200 LPM 2 Stage Oil Purifier Machine
200 LPM 2 Stage Oil Purifier Machine

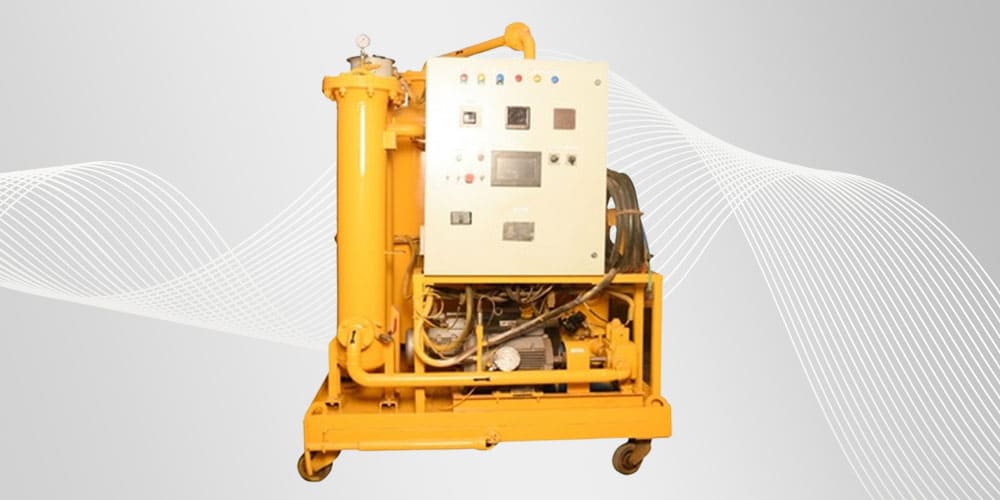

200 LPM 2-stage oil purifier machine with heater, manufactured by ABSOLUTE FILTRATION SERVICES, efficiently removes moisture, dissolved gases, and solid contaminants, improving oil purity, safeguarding equipment, reducing maintenance costs, and ensuring reliable performance in heavy-duty industrial environments.
Product Specification
| Specification | Details |
|---|---|
| Design Principal | Low Vacuum Dehydration Purification |
| Fluid Circulation Rate | 200 LPM |
| Operating Viscosity | 100 cSt (Maximum) |
| Oil Type | Hydraulic oil, lube oil & mineral oil |
| Coarse Filter Rating | 10µm GF media |
| Fine Filter Rating | 05µm GF media |
| Power Supply | 415V AC 3PH |
| Suction Hose | 50 NB SAE100R1 |
| Discharge Hose | 50 NB SAE100R1 |
| Oil Parameter | Unit removes 100% free water & gases, 85% dissolved water & gases |
| Safety Features | All safety interlocks |
Product Features
Efficient dual-stage filtration removes contaminants and moisture, compact portable design ensures easy operation, improves oil quality, extends equipment life.
Short Features
High Flow Capacity (200 LPM)
Can purify 200 liters of oil per minute, suitable for heavy industrial and large-scale operations.
2-Stage Filtration System
Uses dual filters (coarse + fine) to remove impurities up to very small micron levels (around ≤5 micron).
Removes Moisture & Gases
Equipped with vacuum system to remove water, air, and gases from oil efficiently.
High Filtration Accuracy
Can remove fine particles (1–5 micron), improving oil quality and insulation strength.
Continuous & Heavy-Duty Operation
Designed for continuous industrial use with stable performance and low noise.
Short Information
A 200 LPM 2-stage oil purifier machine is a high-capacity industrial system used to clean, dry, and purify oil such as transformer oil, turbine oil, and hydraulic oil.
It works by passing oil through two filtration stages and a vacuum dehydration system, removing impurities, moisture, and gases. This improves oil quality and machine performance.
Common applications include:
Power plants
Heavy industries
Transformer maintenance
Oil recycling systems
